Numpads
Download data sheet

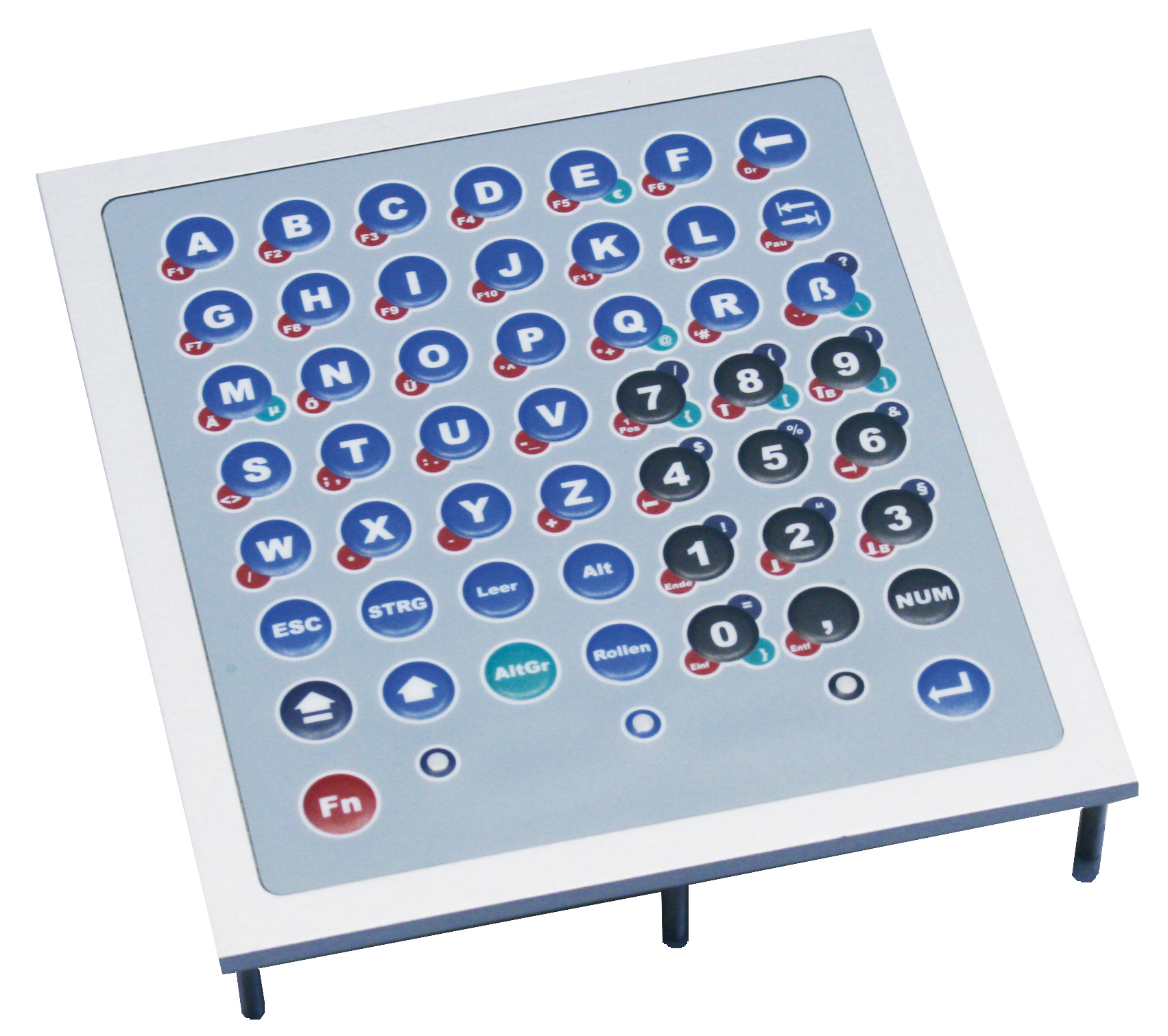

GFT-51 Fronteinbauversion
Item no. 2469
NumpadsKeyboardsMembranewaterproofintegratable
from 140,90 €
Versions & prices
Description
| The front-panel-versions of the 51 series is suited for the use in switchboards and user terminals in the areas automatic production, chemistry, laboratory and medical technology as well as in the environment of information systems. | |
|
Technical data
| Mechanical data | |
| Degree of Protection: | IP65 (static) |
| Color: | aluminium |
| Dimensions: | 127,40 x 114,40 x 15 mm |
| Cable Length: | 180 cm |
| Keys | |
| Key Technology: | metal dome |
| Number of Keys: | 51 |
| Keyboard Layout: | German or US |
| Operational Life: | 1 mio. keystrokes min. |
| Actuation Force: | 0,2 N |
| Stroke Travel: | 0,3 mm |
| Key Legend: | silk screen |
| Electric Data | |
| Interface: | PS/2 or USB |
| Operating Voltage: | ± 5 V |
| Operating Current: | 4 mA |
| Environment | |
| Operating Temperature: | from 0 °C to +70 °C |
| Storage Temperature: | to °C |
| Quality | |
| Live time: | about 1 million cycles |
| Guarantee | |
| Certifications: | CE |
Downloads
GFT-51-Front_DE.pdf ↓
Datasheet German
