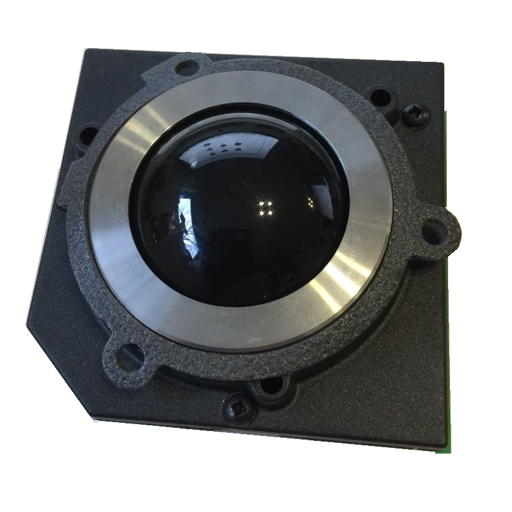

TW-50-IP65 Stainless Steel Trackball Module
Item no. 1216
MiceTrackballswaterproofintegratablevandalism resistantlightedBack Panel Mounted
from 129,80 €
Versions & prices
Description
| Features | |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| Please you consider also the installation version with high-grade steel front plate and integrated metal switches, as you can see in the cross-reference. | |||||||||||||||||||||||||||||||||||||||||||||
| Output Connector (J1): | |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| Input Connector for Switches (J2): | |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| Power Supply for optional Backlight Power: | |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| Configuration with DIP-Switches: | |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| Explanation for VX3: | |||||||||||||||||||||||||||||||||||||||||||||
| The 3rd Axis (VX3) can be of practical use for example in CAD Applications. In combination with the middle button the CAD-Program switches into PAN and ZOOM Mode, so that in a direction of rotation of the Trackball according to 3rd Axis is headed for. Repeated pressing of the middle key toggles between PAN and ZOOM Mode. Pressing either the left or right buttons to return to normal mode. | |||||||||||||||||||||||||||||||||||||||||||||
| Orientation-Setting: | |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| Explanation for Orientation: | |||||||||||||||||||||||||||||||||||||||||||||
| View from top of Trackball: Is the 10-pole. Female connector on left side (9 o'clock - as seen on the following technic-drawing), then the Dip-switches are to be adjusted according to above table. In the example: USB-Version: Dip-1 and -2 On. In order to rotate a quater clockwise (12 o'clock), then DIP 1 is ON and DIP 2 is OFF and so on. | |||||||||||||||||||||||||||||||||||||||||||||
Technical data
| Mechanical data | |
| Dimensions: | 79,50 x 77,60 x 51,1 mm |
| Weight: | ,270 kg |
| Housing: | Plastic |
| Degree of Protection: | IP54 |
| Color: | black |
| Electric Data | |
| Interface: | PS/2 or USB or Combo USB und PS/2 |
| Operating Voltage: | 5 ± 0,25 V |
| Environment | |
| Operating Temperature: | from -0 °C to +70 °C |
| Storage Temperature: | from -25 °C to +85 °C |
| Humidity: | 30% min., 95% max., not condensing |
| Additional Information | |
| Ball colour: | stainless steel |
Accessories
ZK1430
USB-Anschlusskabel, ca. 3 m Länge
cable for USB
9,68 €
excl. VAT
ZK1220
PS2 Anschlusskabel, ca. 1,8m Länge
cable PS/2
9,68 €
excl. VAT
ZK1245
Kabel zum Anschluss von 2 Tasten (L+R) an Trackball mit integriertem Kontroller
Cable Left+Right Mouseswitch -> Controller
9,68 €
excl. VAT
ZK1342
Kabel zum Anschluss von 3 Tasten (L+R) an Trackball mit integriertem Kontroller
Cable Left+Right Mouseswitch -> Controller
9,68 €
excl. VAT
ZTS- M19 Metalltaste mit Anschlussklemme und Pfeil-Beschriftung
M19 Zink-Druckguss Taster
17,60 €
excl. VAT
Downloads
tw50_technik.pdf ↓
Technical Drawing
