Keyboards

W60 Series

Item no. 651

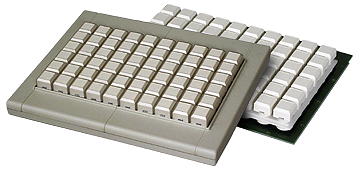

Waterproof programmable keyboard, available either as mountable or as table-top version with 60 single keys.

KeyboardsLong TravelwaterproofcompactintegratableprogrammableSerial Interface

from 198,40 €

excl. VAT and shipping

Add to cart Send inquiry

Download data sheet PDF · A4

Versions & prices

KW2169

W60-USB-Tisch

USB, computer grey

220,60 € excl. VAT

KW2170

W60-USB-Tisch schwarz

USB, black

220,60 € excl. VAT

KW2223

W60-USB-Einbau schwarz

USB, black

198,40 € excl. VAT

KW2204

W60-USB-Einbau

PS/2, computer grey

198,40 € excl. VAT

Description

Applications:
The W60 can be used in areas such as points of sales, banking, as well as in ticketing and of cource all industrial anvironments.
Characteristics:
The long travel keys with a travel of 3.25mm and the good tactile feedback makes this keyboard very confortable to use. The contacts and the elecronic components are both water and dust proof. The software used to program the keyboard is simple to use and is included in the shipment.
You can find all further information on the main page of the W30/W60/W90 series.

Technical data

Mechanical data
Dimensions:	228,6 x 185 x 39,35 mm 205 x 185, x 39,35 mm
Weight:	520 kg
Degree of Protection:	IP65
Housing:	Plastic
Degree of Protection:	IP65
Housing:	Plastic
Color:	computer grey
Cable Length:	200 cm

Keys
Number of Keys:	60
Keyboard Layout:	free
Operational Life:	10 mio. keystrokes
Actuation Force:	0,65,
Stroke Travel:	3,25 mm

Electric Data
Interface:	AT
Operating Voltage:	+5 V
Operating Current:	50 mA

Temperature
Operating Temperature:	von -20 °C bis +60 °C
Storage Temperature:	von -40 °C bis +70 °C

Accessories

ZT1042

KWD-1x1-Tastenkappe Hellgrau

keycaps 1x1

0,76 € excl. VAT

ZT1287

KWD-1x1-Tastenkappe schwarz

keycaps 1x1

0,90 € excl. VAT

ZT1013

KWD-1x2-Tastenkappe Hellgrau

keycaps 1x2

2,00 € excl. VAT

ZT1197

KWD-1x2-Tastenkappe schwarz

keycaps 1x2

2,00 € excl. VAT

ZT1014

KWD-2x2-Tastenkappe Hellgrau

keycaps 2x2

2,70 € excl. VAT

ZT1281

KWD-2x2-Tastenkappe schwarz

keycaps 2x2

2,70 € excl. VAT

ZS2170

Skin-W60 4fach

key skin for 15/60 keys

20,53 € excl. VAT

ZK1280

Einbaurahmen W60

frame for built in version

29,90 € excl. VAT

ZT1106

KWD-Beschriftungsbogen

self-adhesive foil for own legends

1,00 € excl. VAT

ZK1028

COM 925

Adapter AT to PS/2

3,06 € excl. VAT

ZK1029

COM 9255

adapter PS/2 to AT

3,06 € excl. VAT

Downloads

DefinitionTool V05 USB.zip ↓ Programmiersoftware USB

DS-Teach1_PS2.zip ↓ Programmiersoftware PS/2

W30-60-90_Serie_Bedienungsanleitung_2015.pdf ↓ Bedienungsanleitung W-Serie
