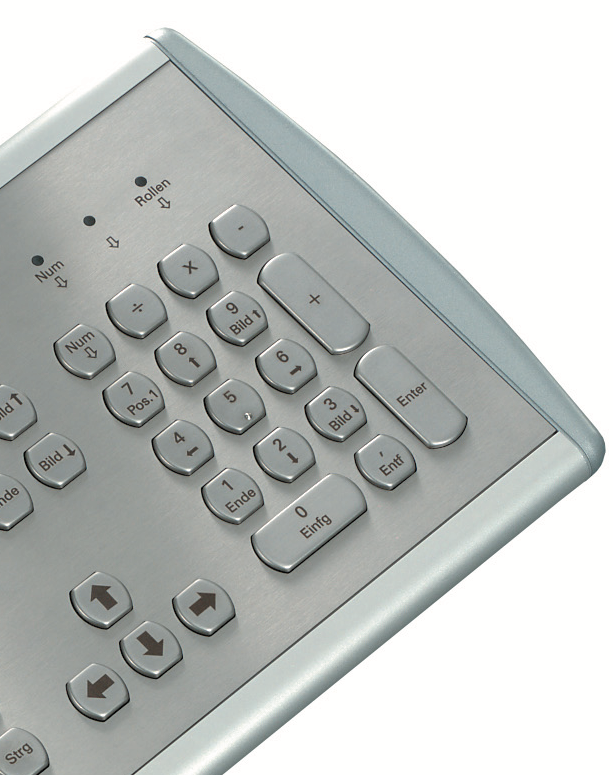

KVS-E105 Table-Top-Version
Item no. 1477
Keyboardswaterproofvandalism resistantMetalPS/2 InterfaceLong Travel KeyboardsUSB
from 532,80 €
Versions & prices
Description
| Modern design and extreme ruggedness all in one! | |
| Up to now the stainless steel keyboards of this series were only available as mountable versions. This keyboard in a table-top housing can now be used just as a standard keyboard without having to mount it. | |
| The riser on the back of the keyboard slants the keyboard towards the user, making it much more ergonomic than any keyboard mounted flat into the desktop surface. | |
| The sides of the keyboard can be ordered in one of the 8 standard colors: | |
| Terracotta Red Magenta Blue Silver Anthrazit Black | RAL 2010 RAL 3000 RAL 4003 RAL 5013 RAL 9006 RAL 9007 RAL 7021 |
| Keyboards can be ordered with customer specifically colored endcaps at no additonal cost beginning with 25 pieces. | |
| In addition to the design aspects these keyboards are extremely robust. Just as one expects it of metal keyboards they are water and dust proof to IP65 and withstand even hard blows, so they can easily be used in areas prone to vandalism. | |
Technical data
| Mechanical data | |
| Housing: | Table-top housing |
| Housing: | High-Grade Steel |
| Degree of Protection: | IP65 |
| Dimensions: | 483,2 x 171,6 x 36,7 mm |
| Cable Length: | 180 cm |
| Keys | |
| Number of Keys: | 105 |
| Keyboard Layout: | German or US |
| Operational Life: | 10 mio. keystrokes min. |
| Stroke Force: | 0,9 ± 0,1 N |
| Stroke Travel: | 1,6 ± 0,1 mm |
| Key Legend: | Laser |
| Electric Data | |
| Interface: | PS/2 or USB (with adapter ) |
| Additional Interface: | for scanner for trackball for mouse |
| Operating Voltage: | ± V |
| Operating Current: | ± mA |
| Environment | |
| Operating Temperature: | from -20 °C to +70 °C |
| Storage Temperature: | from -25 °C to +80 °C |
| Humidity: | |
| Quality | |
| Live time: | |
| Guarantee | |
| Certifications: | |
| delivery form | |
| How delivered: | |
| Material: | |
| mm | |
| Weight: | kg |
| Total in one package: | pcs |
| Material: | |
| Dimensions: | cm |
| Weight: | kp |
| Additional Information | |
| Shock vibration: | 500/ms² 11ms/50 m/s 2-5 kHz sin |
| CE Confomity: | 89/336/EWG (EEC) 73/23/EWG (EEC) |
| Standards: | EN 50 081-1, EN 50 082-2, EN 55 022-B, EN 55 024-B, EN 60 950 |
| Protection class: | IP65 frontpanel |
| Transport and storage: | Class 2M2, 2K2, 1M2, 1K2 acc. to DIN EN 60 721-3-2,-1 |
