KWD-102 Schublade IP65
Drawer

KWD-102 Schublade IP65

Item no. 115

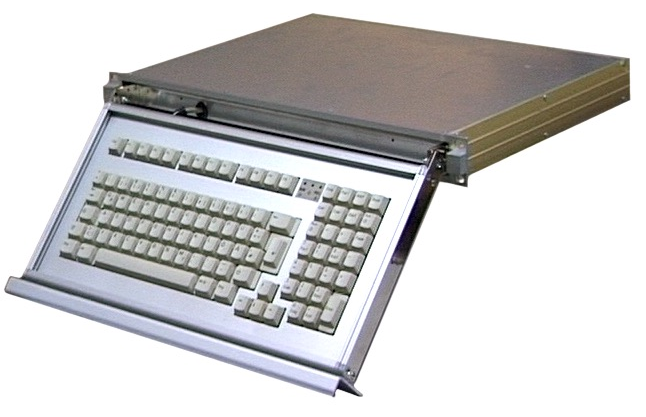

Water and dust proof long-travel keyboard in 1HE drawer

DrawerLong Travelwaterproofintegratablefor 19 inchPS/2 InterfaceSerial InterfaceUSB
from 598,00 €
excl. VAT and shipping
Add to cart Send inquiry
Download data sheet PDF · A4

Versions & prices

KWD-102W-1HE-Winkel-USB-GER
KM1289
KWD-102W-1HE-Winkel-USB-GER
USB, German
598,00 € excl. VAT
KWD-102W-1HE-Winkel-USB-US
KM1290
KWD-102W-1HE-Winkel-USB-US
USB, US
598,00 € excl. VAT
KWD-102W-FM-1HE-Winkel-GER
KM1120
KWD-102W-FM-1HE-Winkel-GER
PS/2, MF2-German
698,89 € excl. VAT
KWD-102W-FM-1HE-gerade-US
KM1121
KWD-102W-FM-1HE-gerade-US
PS/2, US
698,89 € excl. VAT

Description

Applications:
The drawer version KWD-102 is meant for application in 19" panels. There it only takes up the highth of 1 HE. Because of the waterproof housing (IP65) this keyboard is particularly well suitable for rough applications in industry.
Further features:
  • A finger mouse can be integrated into the cursor-up key, which makes an additional mouse unnecessary (see closeup).
  • The fully extracted drawer swivels 30° downward.
  • The metal housing is very durable and it prevents the ingression of liquids and dust into the rack even when the keyboard is deployed.
  • The 2-color moulded key caps are resistant to friction as the inscriptions cannot wear off.
  • Highly comfortable operation because of long stroke keys.
  • In order to avoid soiling of the key gaps we recommend the protective plastic film.
  • The keyboard is AT / DIN5 compatible. PS/2 is available on demand.
  • The keyboard can be costomer-specifically adapted and is available with other country layouts on demand.
The keyboards are even XT compatible. Please specify when ordering.

Technical data

Mechanical data
Dimensions:482,6 x 326,2 x 44,4 mm
Housing:Metal
Degree of Protection:IP65
Color:computer grey
Cable Length:150 cm
Keys
Key Technology:carbon contact
Number of Keys:102
Keyboard Layout:MF2-German
Operational Life:10 mio. keystrokes min.
Actuation Force:0,65 N
Stroke Travel:3,25 mm
Electric Data
Interface:PS/2
Operating Voltage:5 V
Operating Current:30 mA
Environment
Operating Temperature:from -20 °C to +50 °C
Storage Temperature:from -40 °C to +70 °C
Additional Information
Additional Feature:Fingermouse
Technical drawing ↓

Accessories

COM 925
ZK1028
COM 925
Adapter AT to PS/2
3,06 € excl. VAT

Downloads

KWD-102_d.pdf ↓ datasheet English
KWD-102_eng.pdf ↓ datasheet Englisch
